This module adopts MBB multi-busbar half-cut technology, up to 30% additional power gain from back side depending on albedo and the power range is: 520W ~ 545W.
This module adopts MBB multi-busbar half-cut technology, up to 30% additional power gain from back side depending on albedo and the power range is: 520W ~ 545W.

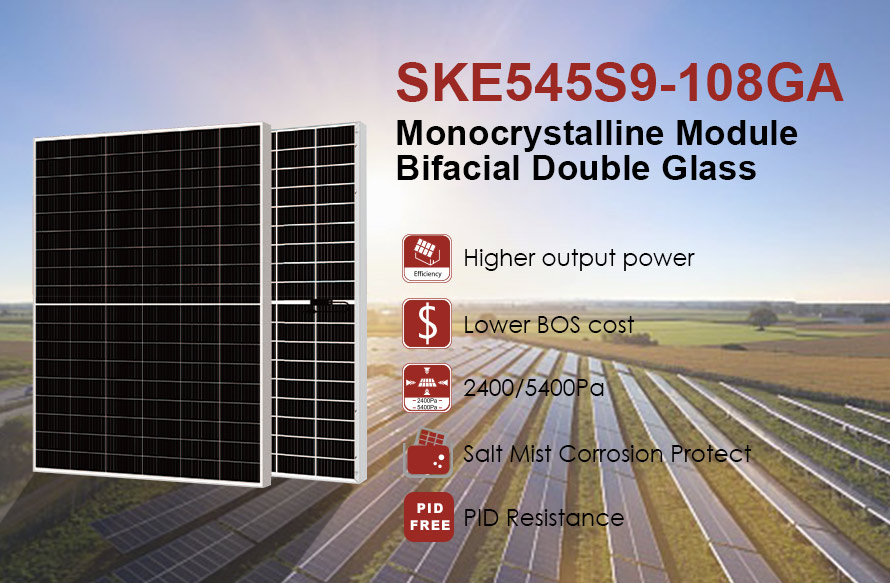

210mm Cell Size 545W Bifacial module 108Cells Mono solar panel
This module adopts bifacial double-glass with frame which provides exceptional strength for higher load capacity. The Module efficiency can up to 21.3%.
Product Information:
| Type |
SKE520S9-108GA |
SKE525S9-108GA | SKE530S9-108GA | SKE535S9-108GA | SKE540S9-108GA | SKE545S9-108GA |
|
Electrical Characteristics(STC*) |
||||||
| Power Output (Wp) | 520 | 525 | 530 | 535 | 540 | 545 |
| Max Power Tolerance (W) |
0-5 |
0-5 | 0-5 | 0-5 | 0-5 |
0-5 |
| Module Efficiency | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 |
| Voltage Mpp-Vmpp (V) | 30.36 | 30.54 | 30.72 | 30.92 | 31.11 | 31.29 |
| Current Mpp-Impp (A) | 17.13 | 17.19 | 17.25 | 17.30 | 17.36 | 17.42 |
| Voltage Open Circuit-Voc (V) | 36.86 | 37.08 | 37.27 | 37.45 | 37.64 | 37.84 |
| Short Circuit Current-Ist (A) | 18.54 | 18.59 | 18.66 | 18.72 | 18.78 | 18.82 |
|
Electrical Characteristics(NMOT*) |
||||||
|
Power Output (Wp) |
399.48 | 403.32 | 407.16 | 411.01 | 414.85 | 418.69 |
|
Voltage Mpp-Vmpp (V) |
27.67 | 27.84 | 28.01 | 28.19 | 28.35 | 28.52 |
|
Current Mpp-Impp (A) |
14.44 | 14.49 | 14.54 | 14.58 | 14.63 | 14.68 |
|
Voltage Open Circuit-Voc (V) |
34.03 | 34.24 | 34.41 | 34.58 | 34.75 | 34.94 |
|
Short Circuit Current-Ist (A) |
15.76 | 15.81 | 15.86 | 15.92 | 15.97 | 16.00 |
| Operating Module Temperature | -40 ~ +85°C | |||||
| Maximum System Voltage |
1500 V DC |
|||||
| Maximum Series Fuse Rating | 30 A | |||||
|
Electrical Characteristics With 10% Rear Side Power Gain |
||||||
| Power Output | 572 | 578 | 583 | 589 | 594 | 600 |
| Voltage Mpp-Vmpp (V) | 30.36 | 30.54 | 30.72 |
30.92 |
31.11 | 31.29 |
| Current Mpp-Impp (A) | 18.84 |
18.91 |
18.98 | 19.03 |
19.10 |
19.16 |
| Voltage Open Circuit-Voc (V) | 36.86 | 37.08 | 37.27 | 37.45 | 37.64 | 37.84 |
| Short Circuit Current-Isc (A) | 20.39 | 20.45 | 20.53 | 20.59 | 20.66 | 20.70 |
STC:Irradiance 1000 W/m2, module temperature 25 °C, AM=1.5；
NMOT： Irradiance 800 W/m2, ambient temperature 20 °C, AM=1.5, wind speed 1 m/s.
| Mechanical Characteristics | |
| Solar Cell | Mono 210*105 mm |
| No. of Cells | 108 [2x (9x6)] |
| Dimensions | 1962 X 1303 X 35 mm |
| Weight | 31.5 kg |
| Front / Back Glass |
2.0 mm heat strengthened glass |
| Junction Box | IP68 rated (3 bypass diodes) |
| Cable |
4mm²/300mm or customized |
| Connector | MC4 compatible |
