210 mm Half cut 132 cells 640W~665W High Power PV Module
210mm 665W module conversion efficiency can reach 21.2%, higher output power, lower temperature coefficient, effectively reduce the system BOS cost and improve the project yield.
Product Information:
| Type |
SKE640S9-132 |
SKE645S9-132 | SKE650S9-132 | SKE655S9-132 | SKE660S9-132 | SKE665S9-132 |
|
Electrical Characteristics(STC*) |
||||||
| Power Output (Wp) | 640 | 645 | 650 | 655 | 660 | 665 |
| Max Power Tolerance (W) |
0-5 |
0-5 | 0-5 | 0-5 | 0-5 |
0-5 |
| Module Efficiency | 20.4 | 20.5 | 20.7 | 20.8 | 21.0 | 21.2 |
| Voltage Mpp-Vmpp (V) | 37.34 | 37.52 | 37.72 | 37.91 | 38.08 | 38.28 |
| Current Mpp-Impp (A) | 17.14 | 17.19 | 17.23 | 17.28 | 17.33 | 17.37 |
| Voltage Open Circuit-Voc (V) | 45.30 | 45.50 | 45.68 | 45.87 | 46.03 | 46.24 |
| Short Circuit Current-Ist (A) | 18.53 | 18.58 | 18.63 | 18.68 | 18.73 | 18.78 |
|
Electrical Characteristics(NMOT*) |
||||||
|
Power Output (Wp) |
491.67 | 495.51 | 499.35 | 503.19 | 507.03 | 510.88 |
|
Voltage Mpp-Vmpp (V) |
34.04 | 34.20 | 34.39 | 34.55 | 34.71 | 34.90 |
|
Current Mpp-Impp (A) |
14.45 | 14.49 | 14.52 | 14.56 | 14.61 | 14.64 |
|
Voltage Open Circuit-Voc (V) |
41.82 | 42.01 | 42.18 | 42.35 | 42.50 | 42.69 |
|
Short Circuit Current-Ist (A) |
15.75 | 15.80 | 15.84 | 15.88 | 15.92 | 15.97 |
| Operating Module Temperature | -40 ~ +85°C | |||||
| Maximum System Voltage |
1500 V DC |
|||||
| Maximum Series Fuse Rating | 25 A | |||||
STC:Irradiance 1000 W/m2, module temperature 25 °C, AM=1.5；
NMOT： Irradiance 800 W/m2, ambient temperature 20 °C, AM=1.5, wind speed 1 m/s.

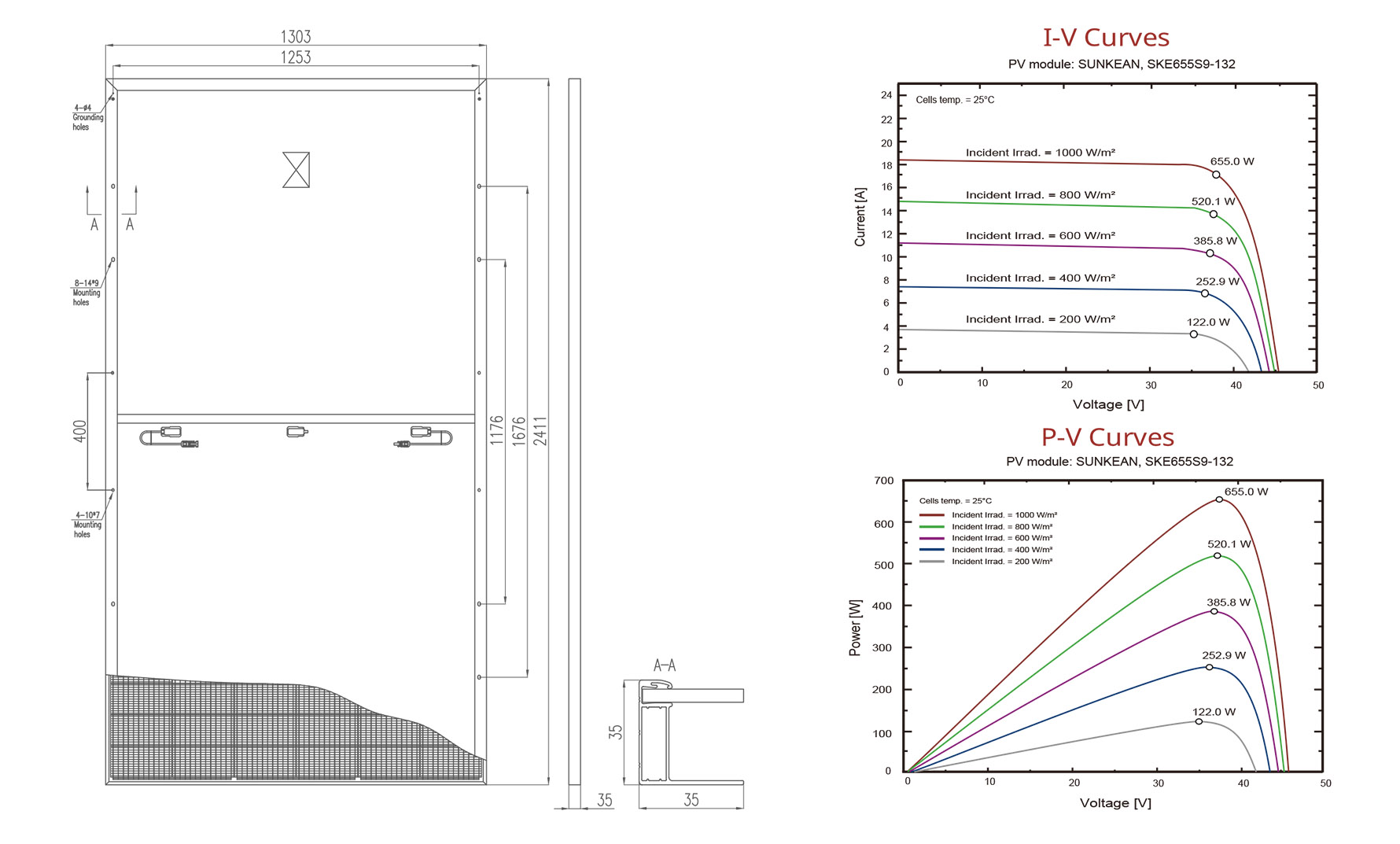

| Mechanical Characteristics | |
| Solar Cell | Mono 210*105 mm |
| No. of Cells | 132 [2x (11x6)] |
| Dimensions | 2384 X 1303 X 35 mm |
| Weight | 33 kg |
| Glass | High transmission glass 3.2mm |
| Junction Box | IP68 rated (3 bypass diodes) |
| Cable |
4mm²/300mm or customized |
| Connector | MC4 compatible |
