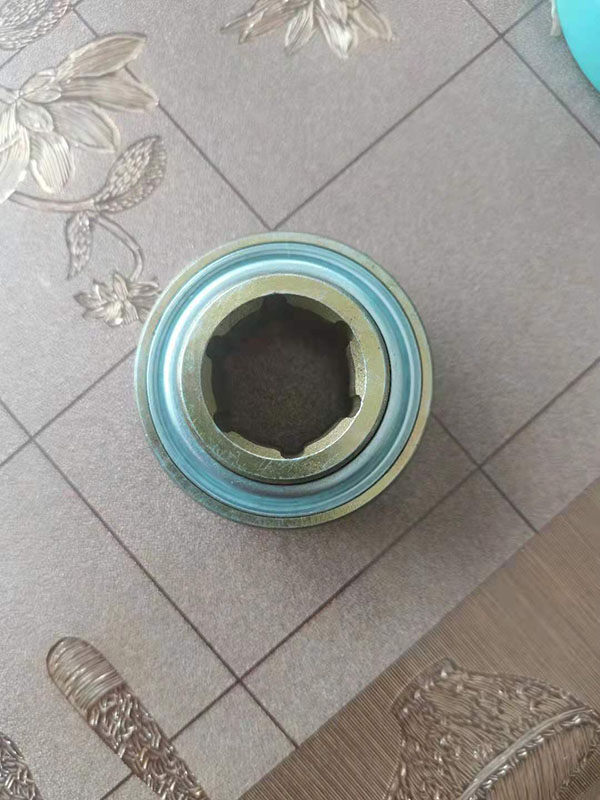

205KRR2 Agricultural Machinery Bearing Specification :
Bearings NO.: 205KRR2
Material :Chrome steel Gcr15
Weight:0.2 kg
Inner diameter,:22.225 mm
Outer diameter:51.998 mm
Total width:25.4 mm
Cage width:15.011 mm
Interchange No.:
SK014-205-KRR (INA, Schaeffler);
HPC014GP (BCA);
1AH05-7/8 (NTN);
205KRR2 (Fani)
|
|
 |
We can produce other Agricultural Machinery Bearing
| BEARING P/N | Size(mm) | |||
| d | D | B | C | |
| 805093 | 12 | 35 | 15.4 | 10 |
| 8267/1/2 | 12.7 | 34.925 | 17.463 | 11.112 |
| 8267/5/8 | 15.875 | 34.925 | 17.463 | 11.112 |
| 202NPP9 | 12.8 | 38.1 | 11 | 11 |
| 202KRRAH | 15 | 35 | 14.4 | 11 |
| 99502H | 15.875 | 34.925 | 11 | 11 |
| 203KRR2 | 16.256 | 40 | 18.25 | 12 |
| 203KRR3 | 15.951 | 50.8 | 15 | 15 |
| 203KRR5 | 13.081 | 40 | 18.3 | 12 |
| 203KRRAH02 | 17 | 40 | 18.25 | 12 |
| 204KRR2 | 20 | 47 | 17.7 | 14 |
| 205KRR2 | 25 | 52 | 21 | 15 |
| AG2565 | 16.07 | 53.08 | 19.5 | 17.1 |
| SC203 | 17 | 40 | 12 | 12 |
| B17-99D | 17 | 52 | 17 | 17 |
| Z9504AB | 19.05 | 45.212 | 15.494 | 15.494 |
| Z9504-2RST | 19.05 | 45.212 | 15.494 | 15.494 |
| 559339 | 19.05 | 52 | 21 | 21 |
| 304C3-H1 | 25.4 | 52 | 21 | 21 |
| 411280 | 30 | 72 | 28 | 25 |
| K6205 | 25 | 52 | 15 | 15 |
| K6206 | 30 | 62 | 16 | 16 |
| K6207 | 35 | 72 | 17 | 17 |
| K6208 | 40 | 80 | 18 | 18 |
Request for Quotation
