2 pole high current 175a plug battery connector

Plug battery connectors are commonly used in battery or charging applications, it provides simplified assembly and minimize the number of components.



Product Details

2 pole high current 175a plug battery connector

Features of Plug battery connectors

  • There are multiple colors, each color has a different interface;
  • There is no distinction between male and female, SH175 connectors of the same color can be mutually matched, and different colors cannot be connected to each other to avoid wrong insertion;
  • Copper-plated silver terminal block, with card slot design, better conductivity;
  • Two-pole design, can be connected to the "+" and "-" poles at the same time.

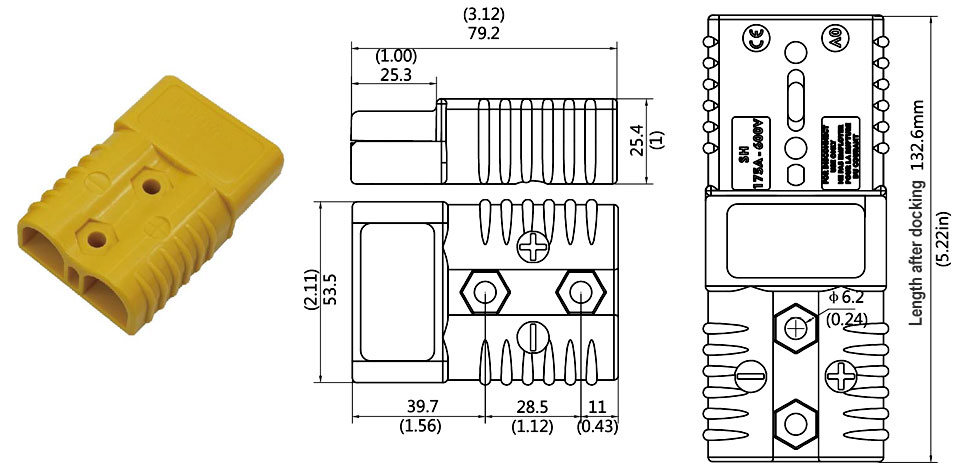

Drawing for SH175 Connectors


Note:A set of SH175 Connector

only contains 2 shell and 4 crimp terminals



Parameter of 175a power connector


Product name
   2 pole high current 175a plug battery connector
Rated Current       175A Rated Voltage       600V
Wire Size       1/0, 2, 4 AWG Contact Material       Copper Plate With Silver
Insulation Material       PC Flammability
   UL94 V-0
Contact Resistance
   <140mΩ Insulation Resistance       5000MΩ
Average.Connection       85N Connector Holding Force       450N Min
Shell Optional Color
   Red, Blue, Black, White, Gray, Yellow, Green, Orange


Auxiliary Parts For SH175 Connectors

  Hold Hands (Available colors: Red, Gray)

  Dustproof Cover (Available colors: Red, Black)

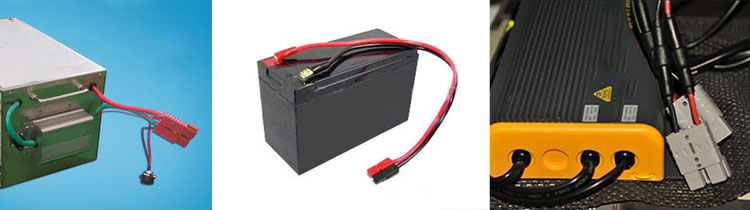

Use occasion of High current dc power connectors


The SH175  connector is mainly used in the following industries:

  • Machinery industry: cutting machine, electric vehicle controller, etc.
  • Power supply: UPS uninterruptible power supply, voltage stabilizer, inverter, lithium battery module, etc.;
  • Electric vehicles, such as golf carts, indoor cleaning vehicles, electric tractors;

*For more information, please contact us by email or through any contact information on the webpage.
