1.Support for Android 9.0 system
2.Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes
3.Equipped with 4000mAh large capacity battery, the machine has a endurance of 4 hours
Data Collector Android Barcode Scanner PDA For Warehouse Inventory Supermarket HQ51
With a rugged industrial design that looks and feels like the most popular pocketable consumer-style smartphones, along with the Zebra-only enterprise-class features, power, security and manageability your business requires, HQ51 is a touch computer that is truly in a class of its own.
Great design is more than just aesthetics –it's functionality too. The Mobile scanning are designed to perform beautifully in the enterprise, making the role of your workforce easier and more productive. With a contemporary design and the modern convenience of a smartphone, it has intergrated features and the rugged design your business requires.
HQ51 data capture terminals are widely deployed in logistics, transportation, healthcare, finance, retail, electric power, livestock, manufacturing, security, warehousing, large-scale exhibition, etc.
Features
Specifications
|
Basic parameters |
Dimension |
147.7 x 74 x 16.4mm |
|
Weight |
Device unit: 220g |
|
|
Device Color |
Black (frant and rear Panel: black) |
|
|
LCD |
5inch IPS 16:9,720*1280 |
|
|
Touch Panel |
5 points Capacitive，G+F |
|
|
Camera |
Rear 13MP |
|
|
I/O |
TF Card x 1 SIM Card x 1 Type C x 1 8Pin back shell x 1, 2Pin machine buttom x 1 Φ3.5mm standard earphone jack x 1 |
|
|
Power |
AC100V ~ 240V, 50Hz/60Hz output DC 5V/2A |
|
|
GPS |
Support: GPS+Glonass |
|
|
Performance parameter |
CPU |
Qualcomm(OCTA Core), 2.0GHz |
|
OS |
Android 9.0 |
|
|
RAM |
4GB LPDDR3 |
|
|
ROM |
64GB |
|
|
Battery |
Capacity |
3.85V/4000mAh |
|
Type |
Built-in Lithium-ion polymer battery |
|
|
Endurance |
4.5hrs (default 50% volumn, default 200 nit, play 1080P HD video) |
|
|
Network connections
|
WIFI |
2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac) |
|
Bluetooth |
BT4.0 (BLE) class1 transmission distance：10m |
|
|
2G/3G/4G |
CMCC 4M: LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8 |
|
|
Reliability
|
Operate Temperature |
-10 °C ~ 55 °C |
|
Store Temperature |
-20 °C ~ 60 °C
|
|
|
Humidity |
95% Non-Condensing |
|
|
IP Grade |
IP65 |
|
|
Data Collection
|
NFC |
Support SO/IEC under 14443A mifare protocol, Card reading distance: 3cm~5cm
|
|
1D |
Support Zebra SE4710，Optional Honeywell N6703 |
|
|
2D |
||
|

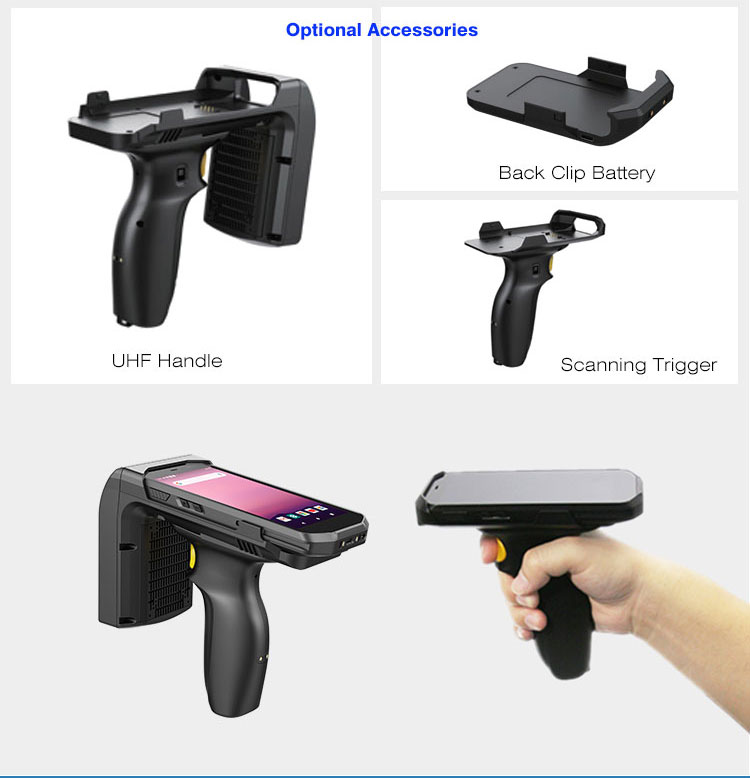

Optional Accessories |
Back Clip Battery Docking Charger Scanning Trigger Docking Charger Multiple Charging Dock |
|
