19mm 1NO1NC illuminated push button switch 15 amp
Description of 19mm Pushbutton
This metal push button switch is easy setup. All you need is a 0.74"/19mm hole and the switch will sit in nicely. It has two switch functions: 1NO1NC/2NO2NC, Momentary/Self-locking.
| Features of IP67 push button switch |
IP67 dustproof and waterproof
Metal surface, exquisite and durable
Built-in LED lamp beads, uniform and bright light transmission, long service life
High load, the maximum can withstand 20A current in actual use
Long service life, 50,000 power-on life guarantee
Optional with cable connection tail plug, more convenient to use
| Specifications of Metal Push Button Switch |
| Product Name: |
19mm high current push button switch |
Product Model: | 19QE |
| Switch Rating: | 16A/250VAC | Terminal Type: | 2.8 x 0.5 J pin terminal |
| Switch Function: | 1NO1NC/2NO2NC, Momentary/Self-locking | Environment Temperature: | -20℃~+55℃ |
| Contact Resistance: | ≤50 mΩ | Insulation Resistance: | ≥1000 MΩ |
| Panel Thickness: | 1~10 mm | Protection Grade: | IP65/IP67, IK10 |
| Contact Material: | Sliver Alloy | Button Material: | Stainless steel, Zn-Al alloy(any color) |
| Body Material: | Brass nickel plated, Stainless steel, Zn-Al alloy(any color) | Base Material: | PBT |
| Lamp Voltage: | 2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V | Lamp color: | Red, Orange, White, Blue, Green, Yellow |

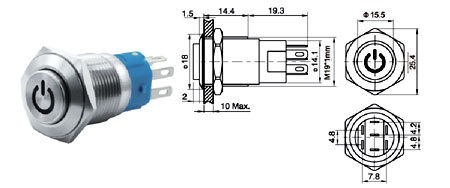

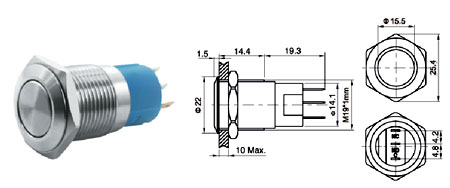

| Drawing of waterproof push button switch |
 |
|
 |
|
19QE-F11Z |
|
19QE-H11Z |
 |
|
 |
|
19QE-F11Z/E |
|
19QE-H11Z/E |
 |
|
 |
|
19QE-F11Z/EV |
|
19QE-H11Z/EV |
 |
|
 |
| 19QE-F11Z/V |
|
19QE-H11Z/V |
| Application of Illuminated Push Button |
Most often push button switches are widely used in electrical automation equipment, large machinery, home appliances
19QE Push button Optional Accessories
