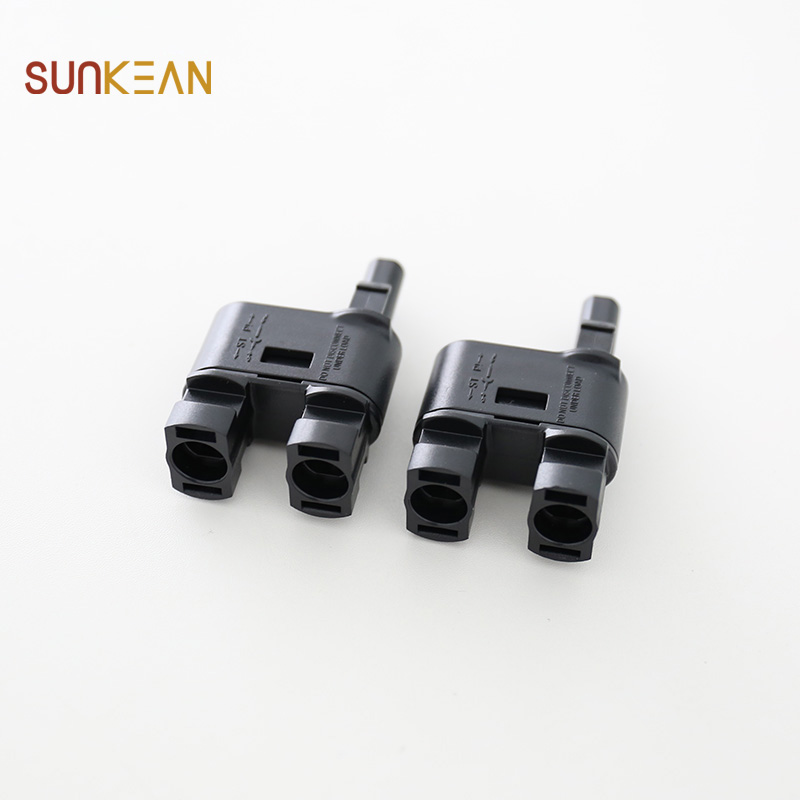

1500VDC 2in1 PV4.0 Branch Connector

TUV approved 1500VDC 2in1 branch connector,can be used to wiring solar panels in series.

Features and benefits
  • Rated Current :

    35A
  • Rated Voltage :

    1500VDC
Product Details

1500VDC 2in1 PV4.0 Branch Connector

*TUV approved branch connector

*Compatible with MC4 connector

*Low contact resistance

*IP68 protection class

*Easy to install

*Stable connection & low maintenance cost

*Suitable for outdoor harsh environment


Solar branch connector 1500VDC 2in1:

T2 Solar PV connector

T2 Solar PV connector

Insulation material
PPE
Safety degree
II
Rated current
35A
Flame class
UL94-V0
Rated lmpulse voltage
12KV
Installation type
(F1)Outdoor,UV resistant(F1)
Rated voltage
1500VDC
Ambient temperature range
-40℃...+85℃(IEC)
Test voltage
8kV(50Hz,1min)
Upper limiting temperature
110℃(IEC)
Contact resistance
<0.35mΏ
Overvoltage category/Pollution degree
CATІІІ/2
Contact material
Copper,Tin plated
Rated lmpulse voltage
16kV
Degree of protection
IP68
Regulatory approval

TUV/CE(IEC62852:2014)


Packing & Delivery:

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Solar Panel Power Connectors


Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, Solar Panel Wire Connectors, solar extension cables , 2in1 Solar PV connector, Solar Panel Branch Connector, inverters etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
