The MC4 Photovoltaic Connector Is The Most Used Special Connector In The Solar Photovoltaic Power Generation System, And It Is An Indispensable And Important Component Of The Solar Power Generation System.The Connection Is Reliable, And It Is Not Easy To Fall Off During Work. Easy Maintenance.
| Description Of Waterproof Solar Panel Connector |

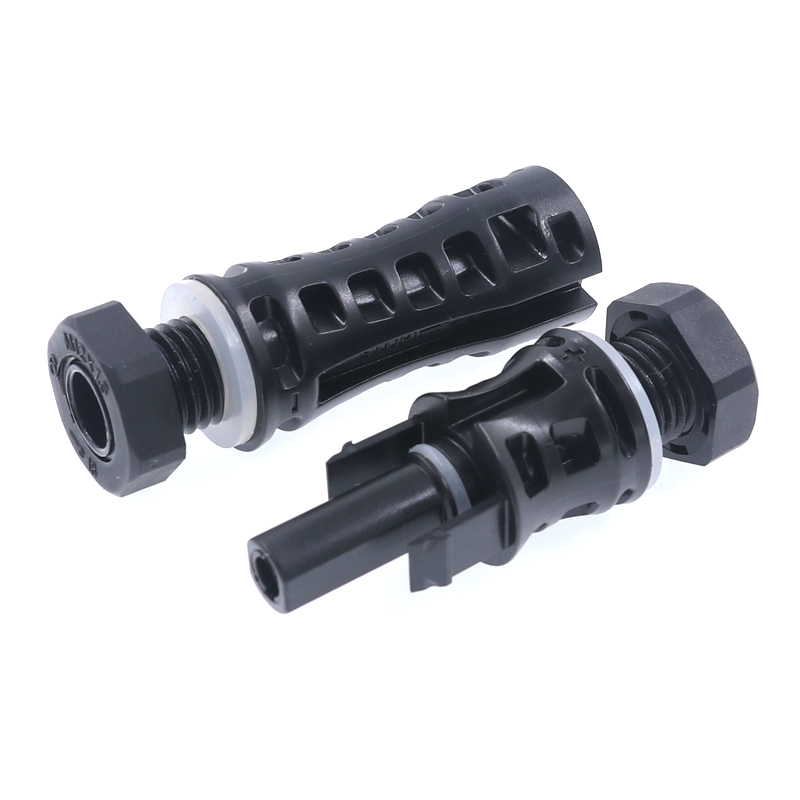

The Connector Can Be Installed On The Photovoltaic Junction Box Panel, And Is A Special Connector When Solar Photovoltaic Panels Are Connected In Series To Form An Array Module.

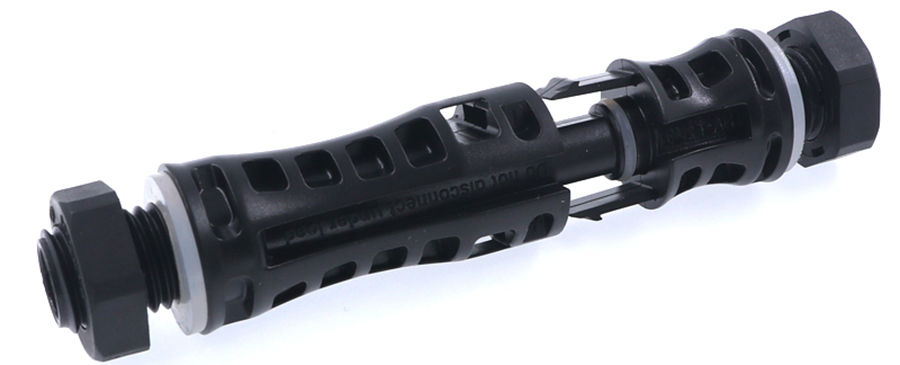

| Drawings Of Solar Panel Connector Plugs |
| Technical Data For Junction Box Mounting MC4 Connectors |
|
Connector System: |
φ4mm |
Temperature range: |
-40℃...+90℃ |
| Rated Voltage: | 1500 V DC | Rated current: | 30 A / 50 A (1.5 mm²~6 mm²) |
| Degree of protection, mated: | IP67 | Unmated: | IP2X |
| Contact resistance of plug Connectors: | 0.5 mΩ | Contact material: | Snap-in |
| Locking system: |
Messing, verzinnt Copper Alloy, tin plated |
Insulation material: | PC/PV |
| Flame class: | UL-94-V0 | Salt mist spray test, degree of severity 5: | IEC 60068-2-52 |
| Feature of PV Solar Connector |
It has the characteristics of fast and reliable connection, waterproof and dustproof, and easy to use.
The shell has strong anti-aging and ultraviolet resistance.
The cable connection is connected by compression and tightening.
The male and female heads are fixed with a stable self-locking mechanism.
Open and close freely.
