1500C DC inline fuse connector protect the over-load current from solar panel and Inverter. It is compatible with multic contact and other types connector.
1500C DC inline fuse connector protect the over-load current from solar panel and Inverter. It is compatible with multic contact and other types connector.
1500DC Solar PV wiring harnesses with fuse 20A
The inline fuse can be replaced, quickly and reliable connection,UV resistance and IP68 waterproof, can be working outdoor for 25years.
Product Description:
*Can be customized according to customer requirements.
*Replaceable fuse.
Product Technical Date:
|
Insulation material |
PA/PPE |
Safety degree |
II |
|
Rated current |
30A(without fuse) |
Fuse Specification |
20A |
|
Rated voltage |
1500V DC |
Flame class |
UL94-V0 |
|
Maximum voltage |
8kV |
Ambient temperature range |
-40℃…+85℃(IEC） |
|
Contact resistance |
≤5 mΩ |
Upper limiting temperature |
110℃(IEC) |
|
Contact material |
Copper, Tin plated |

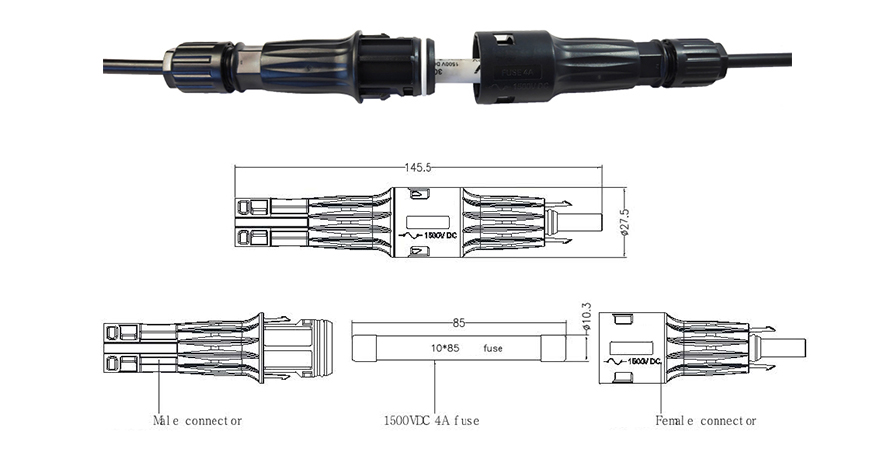

Suitable for fuse size(mm) |
10*85 |
|
Degree of protection |
IP68 |
Regulatory approval |
TUV / CE (IEC62852:2014) |
Packing & Delivery:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover solar cable connectors, solar cables, solar extension cables , solar energy off grid, lithium ion battery for solar storage, 3 phase off grid solar inverter etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could it get the sample ?
A: We have Solar PV wiring harnesses in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
