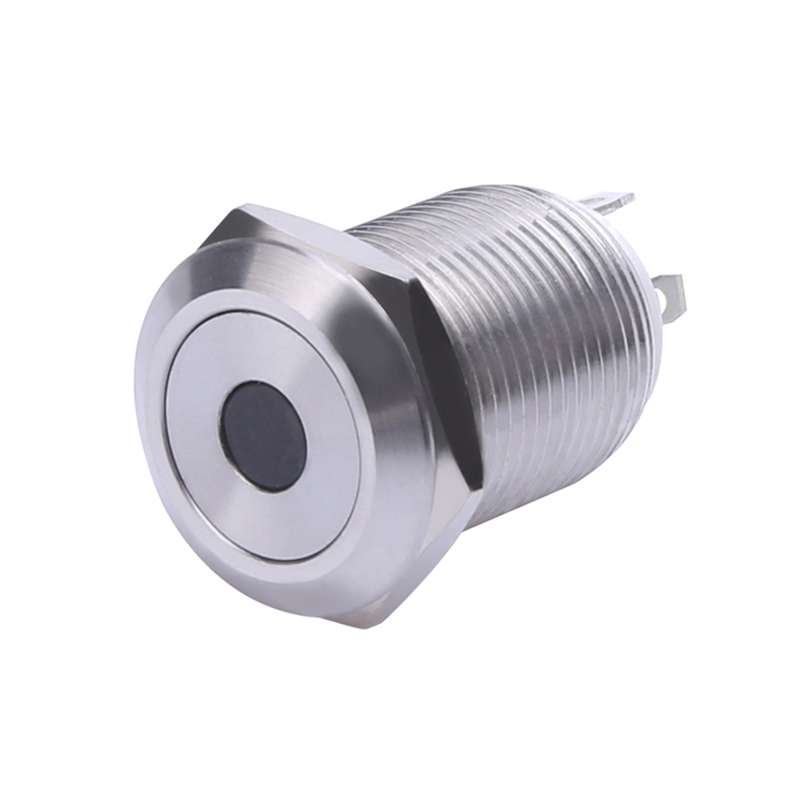

12mm waterproof 4 pin latching push button switch with light
Features of Latching push button switch
Precision spiral thread: Nut type mounting and fixing, easy to installation. Deep thread, the force is evenly and firmly.
|
Specifications of 4 pin push button switch |
| Product Name: |
12mm momentary push button switch |
Product Model: | 12QB |
| Switch Rating: | 2A/36V DC, 2A/250V AC, 3A/250V AC | Terminal Type: | 2.0x0.5 J pin terminal |
| Switch Function: | 1NO, Momentary | Environment Temperature: | -20℃~+55℃ |
| Contact Resistance: | ≤50mΩ | Insulation Resistance: | ≥1000MΩ |
| Panel Thickness: | 1~10mm | Protection Grade: | IP65, IK108 |
| Contact Material: | Sliver Alloy | Button Material: | Stainless steel, Zn-Al alloy(any color) |
| Body Material: | Brass nickel plated, Stainless steel, Zn-Al alloy(any color) | Base Material: | PBT |
| Lamp Voltage: |
2V(Red, orange, yellow), 3V(Green, Blue, White), 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V( Need an external resistance) |
Lamp color: | Red, Orange, White, Blue, Green, Yellow |

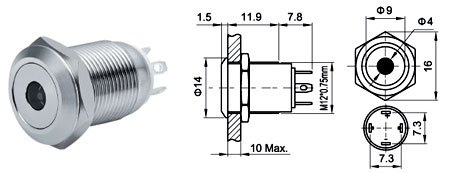

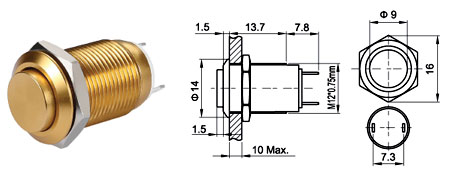

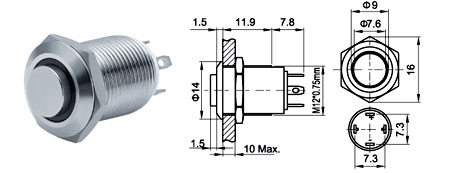

| Drawings of Latching Push Button Switch |
 |
|
 |
||
| 12QB-F10 |
|
12QB-H10 |
||
 |
|
 |
||
| 12QB-B10 |
|
12QB-H10/A(Y) |
||
 |
|
 |
||
| 12QB-F10E |
|
12QB-H10/E |
||
 |
|
 |
||
| 12QB-F10/D |
|
12QB-H10/D |
||
 |
|
 |
||
| 12QB-F10/V |
|
12QB-H10/V |
||
| Application of 12mm Button Switch |
12mm push button switch can used in car modification, motorcycle modification, computer modification, access control switch, home appliance button, industrial control instrument.
FAQ:
What is the lamp color and voltage?
Color: Regular color- Red, Green, Yellow, Blue, White; Can custom- Purple, Orange, Dual-color, Tri-color
Voltage: Red & Yellow - Rated voltage 2V, Green & Blue & White - Rated voltage 3V; Other voltage (5V/6V/12V/24V/36V/48V/110V/220V) required an external resistor. We provide resistors for free, but you need to solder them yourself. We can also provide soldering service, more details pls consult us.
