There are 2 kinds of contact terminal: solder terminal (J pin terminal) and screw terminal. And many different button colors can choose.
There are 2 kinds of contact terminal: solder terminal (J pin terminal) and screw terminal. And many different button colors can choose.

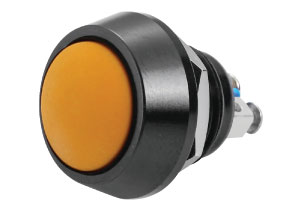

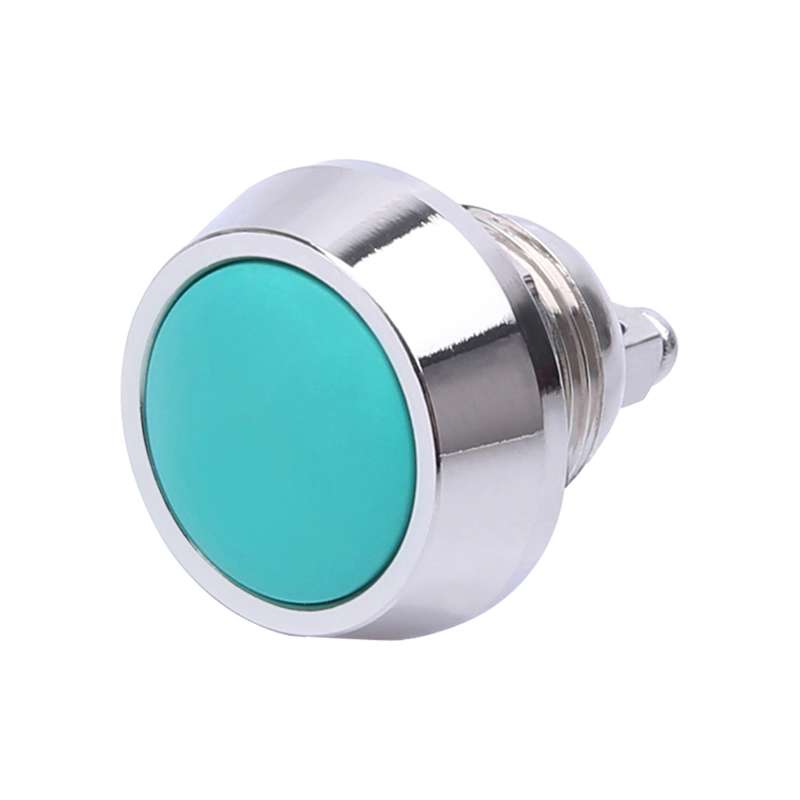

12mm push button momentary switch 1NO
Features of 12mm Push Button Switch |
Specifications of 1NO Push Button Switch |
Product Name: |
12mm momentary push button switch |
Product Model: | 12QA |
Switch Rating: | 2A/250V AC 2A/36V DC | Terminal Type: |
2.0x0.5 J pin terminal / Screw terminal |
Switch Function: | 1NO, Momentary | Environment Temperature: | -20℃~+55℃ |
Contact Resistance: | ≤50mΩ | Insulation Resistance: | ≥1000MΩ |
Panel Thickness: | 1~5mm | Protection Grade: | IP65, IK08 |
Contact Material: | Sliver Alloy | Button Material: | Stainless steel, PBT |
Body Material: | Brass nickel plated, Stainless steel, Zn-Al alloy(any color) | Base Material: | PBT |
Drawing of 12mm Button Switch |
12QA-B10 J Pin Terminal |
||
![]() |
![]() |
![]() |
![]() |
![]() |
|
12QA-B10L Screw Terminal |
||
![]() |
![]() |
![]() |
![]() |
|
Application of Red Push Button Switch |
12mm push button switch can be applied to car motorcycle modificaction, electric equipment, appliance, machine, home Lamps etc.
*For more information, please contact us.
