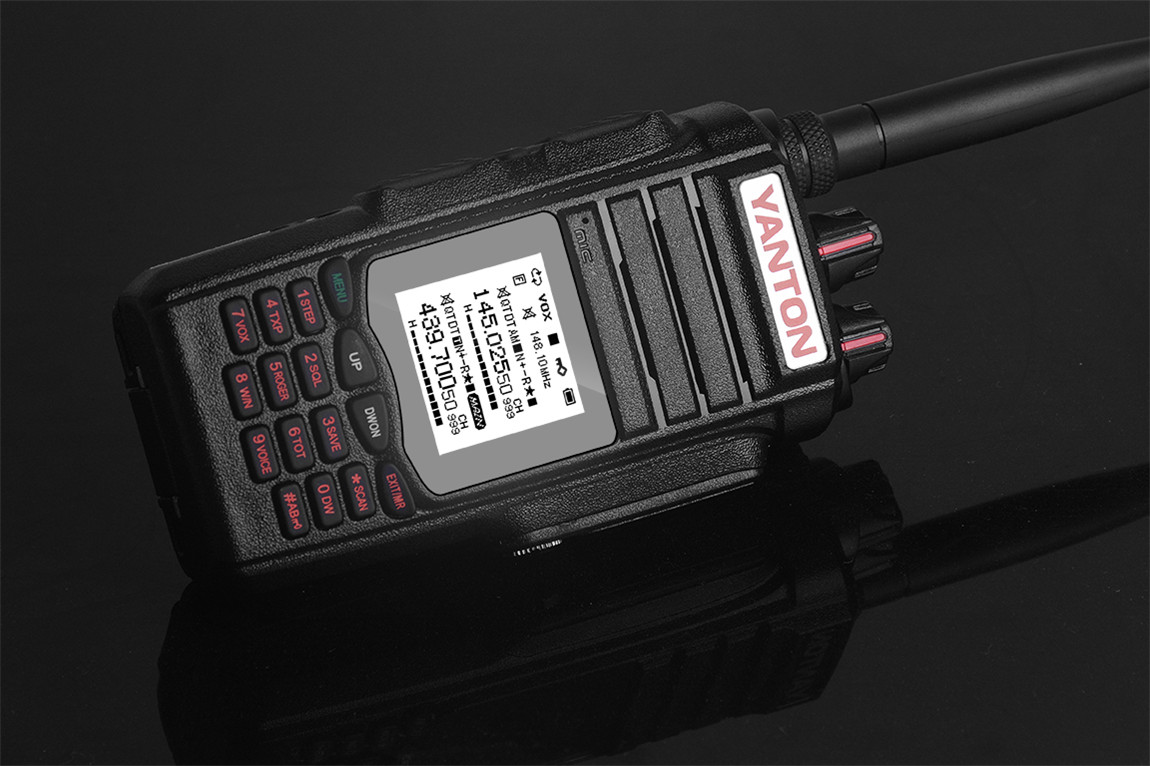

10W Long Range Dual Band Handheld Walkie Talkie Radio
10W Waterproof Handheld Ham Radio Walkie Talkie,With higher ouputpower 10W, numeric keypad, wide-band coverage, 999 channels, cross band VHF to UHF or UHF to VHF. T-650UV has integrated all cutting-edge analog technologies, and is capable of fulfilling any demand on conventional communication.
Quick Details
1.999channels
2.10W/5W/2W Power Switch with Side-key operation
3.Dual band,dual display, dual standby
4.Repeater function
5.Scrambler (optional)
6.Chinese/English Voice Announcement
7.Wide/Narrow Bandwidth Selection 12.5KHz/25KHz
8.CTCSS&DCS non-standard code
9.VOX on/off, VOX level setting, VOX delay time setting
10.DTMF/PTT ID
11.Busy Channel Lockout
12.Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete
13.TX Power Level Adjustment by hand operation
14.Squelch level report, Squelch level adjustment
15.TOT function
16.Emergency Alarm
17.2 Tone
18.Remote Kill,Stun,Activate&Revive
19.Tail Tone Eliminate
20.Wire Clone
21.PC Software Program
Specification
|
GENERAL |
|
|
Frequency Range |
136-174MHZ&400-480MHZ |
|
Operating Temperature |
-20℃to +55℃ |
|
Frequency Combination |
please lock frequency synthesize |
|
Frequency Stability |
±2.5ppm |
|
Memory Channel |
999 |
|
Working voltage |
7.4 |
|
Antenna Impedance |
50Ω |
|
Operating Mode |
simplex of co-frequency or alien |
|
Dimensions |
135*70*38mm |
|
|
255G |
|
TRANSMIT PART |
|
|
RF power |
10W |
|
Modulate Mode |
F3E |
|
Max.Freq.Deviation |
≤5KHz |
|
Remain Wave Radiation |
≤60db |
|
Transmitting Current |
≤1000mah |
|
RECEIVER PART |
|
|
Sensitivity |
＜0.20uV (12dB SINAD) |
|
Squeich Sensitivity |
＜0.20uV |
|
Intermodulation Antijamming |
50db |
|
Audio Power output |
500mW |
|
Receiving Current |
≤100mh |
|
Squelch Stangby |
20ma |
Long Range Handheld 10W Walkie Talkie 15KM
