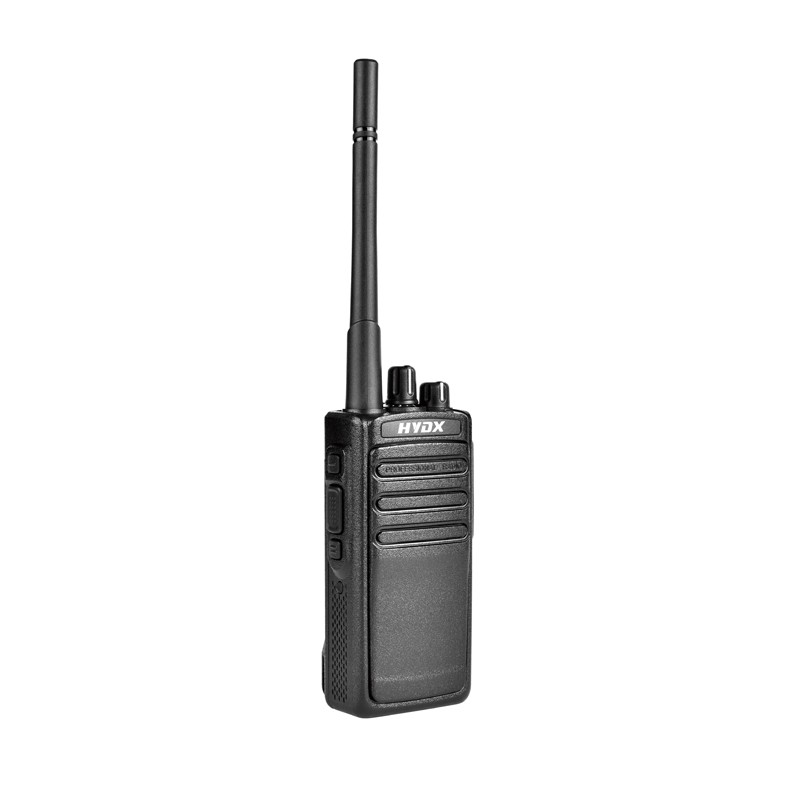

10miles UHF Long Range Portable Two Way Radios

Hot selling 10W handheld 3-10miles communication distance walkie talkie
Product Details

10miles Long Range Portable Two Way Radios


Product Description:

·Strong shell and stubborn accessories will last long time and save cost for your business.
·2200 mAh battery will last about 18-24 hours using;power your working time all the time.
·Belt clip and VOX function will offer real hands free;improve your working efficiency.
·Equipped with 6 way gang charger and charging 6 pack walkie talkies together to save time for your business.
·Emergency alarm will protect your safety when you work alone.


Main Functions

1.136-174MHz/400-470MHz

2.High/Low Power Switchable 10W/5W

3.High Battery Capacity 2200mAh

4.Monitor

5.Tail Elimination

6.VOX

7.Power Save

8.Channel Scanning


Technical Specification

GENERAL
    Frequency Range

    UHF:400-470MHz

    VHF:136-174MHz

    RF Output Power     H:10W±1W   L:5W±0.5W
    Channels     16
    Channel Spacing     Wide:25KHz   Narrow:12.5KHz
    CTCSS/DCS     50 CTCSS / 105 DCS
    Antenna Impedence     50Ω
    Operating Temperature     -20℃+60℃
    Operating Voltage     DC 7.4V
    Battery Type     2200mAh
    Dimension(Excluding antenna)     132(H)×62(W)×35(D)mm
    Weight(Battery,Antenna Including)     About 280g
TRANSMITTER
    Output Power

    H:10W±1W

    L:5W±0.5W

    Frequency Stability     ±1.5×10-6ppm
    Modulation Mode     F3E
    Modulation Sensitivity     12±5 mV
    Adjacent Channel Power

    ≥65 dB

    Modulation Distortion     ≤1%
    Transmit Spurious Emission     ≥62 dB
RECEIVER
    Reference Sensitivity     ≤-122 dBm
    Adjacent Channel Selectivity     ≥55 dB
    Inter-modulation response immunity     ≥55 dB
    Block

    ≥84 dB

    Rated Output Power     ≤1000mW @16Ω
    Rated Audio Distortion     ≤5%
Packing&Delivery


Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.


*  1 x HYDX Q610


*  1 x Antenna


*  1 x Battery


*  1 x Charger


*  1 x Belt Clip


*  1 x Hand Strap


*  1 x User Manual
