Capacitive touch screen display tablet pos terminal

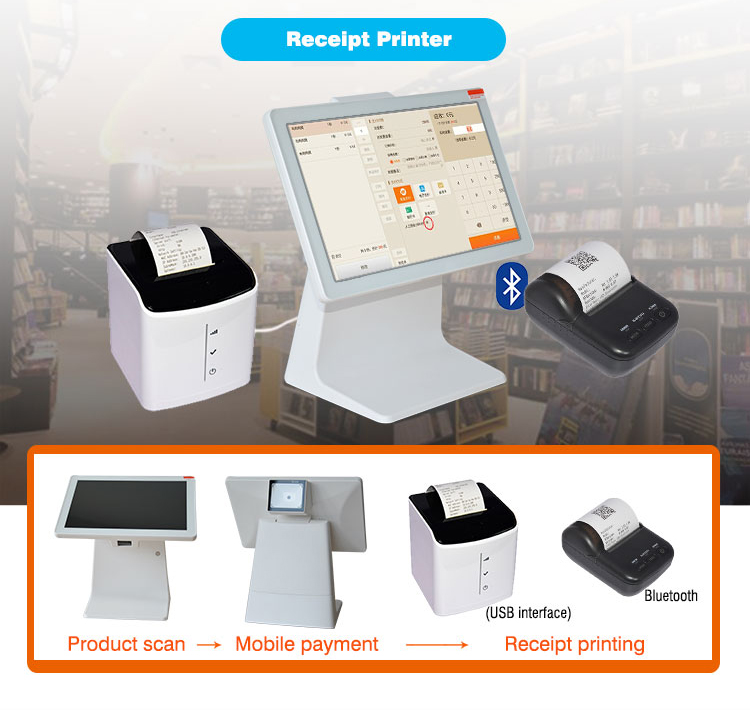

HCC-A1012 can provide a wide range of peripheral equipment, so as to have flexibility. Peripheral device options include: MSR/card reader, fingerprint/biometric card reader, RFID card reader, printer, cash drawer, etc. Through the external connection, small ticket printing, barcode scanning, payment card reading, and a full set of cashier tasks can be realized. By separating the data cable into the base behind the terminal, the peripheral cable management can be kept tidy.
Features
Specifications
|
System |
Andriod 7.1 |
|
CPU |
RK3288, 4x ARM Cortex-A17 @ 1.8 GHz |
|
GPU |
ARM Mali-T760 MP4 |
|
RAM/Storage |
2G/8G |
|
Display |
Size:10.1 inch Resolution:1280*800 Type:Capacitive |
|
Speaker |
Built-in 2W speaker |
|
Dimension |
169*157*310(L*W*H)(Without camera) |
|
Environment |
Working temperature:-10°C~40°C Storage Temperature: -20°C-55°C Humidity: 20%・90% RH |
|
Communications |
WIFI:IEEE 802.11b/g/n Bluetooth:BT2.1+EDR/3.0/4.0/4.1/4.2 B Ethernet:10/1 OOM adaptive |
|
Weight |
Net Weight:1.2kg Gross Weight:1.9kg |
|
Ports |
1* SIM Card slot(optional) 1* RJ12 6P6C cash drawer |
|
1*TF Card slot 1* RJ11 6P4C com |
|
|
1* 3.5mm Jack 4* USB 2.0 TypeA |
|
|
1* Power port 1* RJ45 LAN |
|
|

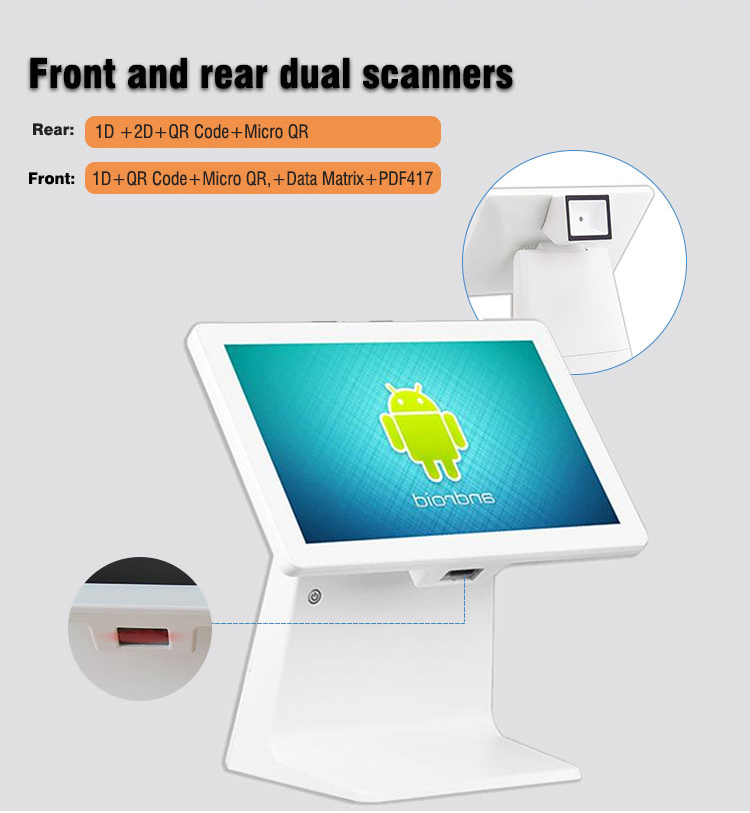

Rear scanner module |
|
|
Prompt mode |
Buzzer, LED indicator |
|
Trigger mode |
Command trigger, automatic induction trigger, continuous trigger |
|
Setting method |
Scan code setting, command setting |
|
Interface |
USB HID keyboard |
|
Recognition angle |
Rotation 360°, left and right tilt ±45°, front and back tilt ±45°, recognition accuracy >5mil |
|
Reading code |
1D: Code128,Code39,EAN,UPC,Code93,ISBN-13,Interleaved 2 of 5 |
|
2D: QR Code |
|
|
Front Scanner Module |
|
|
Prompt mode |
Buzzer, LED indicator |
|
Trigger mode |
Command trigger, automatic induction trigger, continuous trigger |
|
Setting method |
Scan code setting, command setting |
|
Interface |
USB HID keyboard |
|
Recognition angle |
Rotation 360°, left and right tilt ±45°, front and back tilt ±45°, recognition accuracy >5mil |
|
Reading code |
1D: Code 128, EAN-13, EAN-8、UPC-E,UPC-A,ISBN,ISSN,Code 11,ITF-25 (Interleaved 2 Of 5), Code39,Code93,Code32,Codabar, Matrix 2 of 5, Industrial 25,IATA25,MSI Plessey |
|
2D: QR Code,Micro QR, Data Matrix,PDF417 |
|
