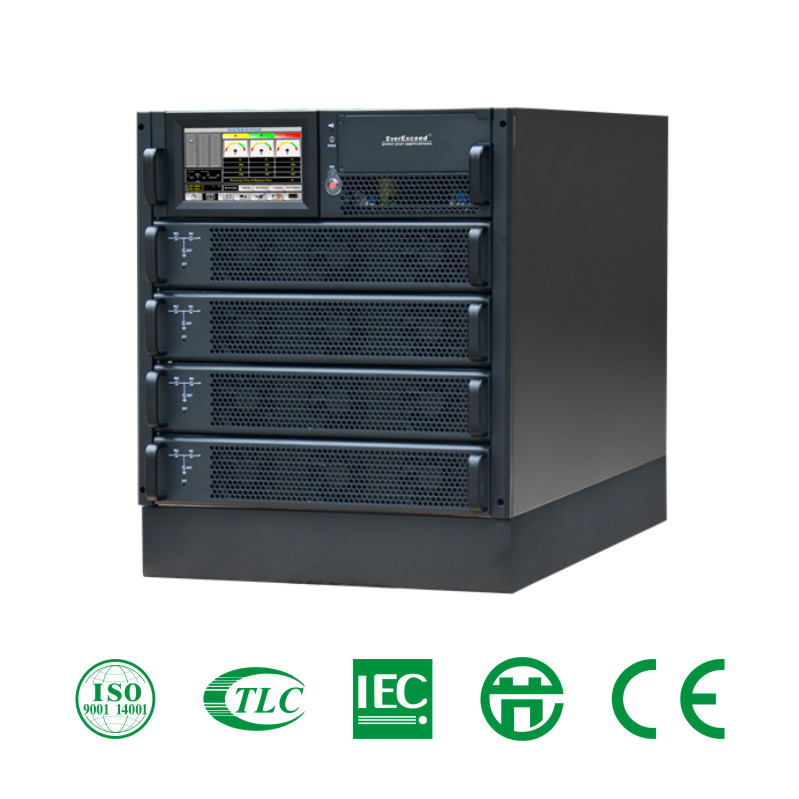

10-90kVA PXM Plus Series Modular UPS

10-90kVA PXM Plus Series Modular UPS

10kVA and 15kVA module, 380/400/415VAC, 3:3

The PXM Plus Modular UPS is a new generation Uninterruptible power supply. The parallel architecture adopts a highly intelligent modular design to achieve maximum power availability and redundancy. With advanced IDC power solutions and smart management technologies it is specially designed to meet the protection demands of mission critical loads in data centers or other important applications. Its flexible configuration of 3/3 and 3/1, compact structure is the ideal choice for small and medium data center.

Features and benefits

Certificate :
TLC, CE
Applications :
ISP, IDC, Computer room, small & medium data center
Efficiency :
Up to 98%
Rated frequency :
40Hz-70Hz
Rated voltage :
380/400/415VAC
Rated capacity :
10-90KVA
Model :
PXM Plus

Request A Quote

Product Details

Technical Feature


Integrated solution for data center	Rack modular design	High efficiency
UPS can be integrated with battery cabinet, PDU and external maintenance bypass, offering excellent choice for data center	Compatible with 19” standard rack cabinet, convenient to be integrated with servers.	System efficiency up to 96%

Intelligent charging management	High power density	Flexible configuration
The system intelligently control the whole process of charging & discharging, effectively improve the life time of the battery	10/15KVA power module in 2U height, saving great amount of space, easy for capacity expansion	The system can be configured to 3/3 and 3/1 without derating

Smart sleep function	Self aging mode	Multi communication interface
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency	Energy internal circle technology, system can run with full load ,saving more than 90% energy	Provide RS232, RS485, USB, SNMP & programmable dry contacts.7" touch color LCD with graphic display which is easier for customer to operate
