0.75kW-2.2kW E5 Series High Performance Universal Inverter

As the VFD manufacturer in china, V&T E5-H series is a high performance universal vector control inverter with superior performance-price ratio and powerful control functions. It is widely used in various drive and speed regulation in the fields of machine tools, food, paper making, metallurgy, chemical industry, wire and cable, power, textile and transmission.


Features and benefits
  • Certification :

    CE, EAC, ISO9001, OHSAS18001, TS16949, SG
  • Shipping Port :

    Shenzhen
  • Place of Origin :

    China
  • Availability :

    OEM/ODM, Minmum Order Request
  • Package :

    Standard Export Package Carton/Wood
  • Transportation :

    Express · Sea freight · Land freight · Air freight
  • Delivery Time :

    5-7 working days for standard series; 7-14 working days for customized AC drives
  • Warranty :

    18 Months
  • Customized :

    YES
  • Term of payment :

    T/T, L/C, D/P
  • Sample freight payer :

    Buyer
  • Sample provide :

    YES
Product Details

Product Overview

Item Description
Product Name Frequency Inverter/ AC Drive
Model Number E5-H-4TxxG
Power Range 0.75kW-500kW
Rated Input Voltage 3 phase 380V/480V
Rated Output Voltage 3 phase 0 to rated input voltage
Input Frequency 50Hz/60Hz
Adaptable Motor Asynchronous Motor
Control Mode V/F Control, Vectorization V/F Control,
Communication Modbus 485 RTU
IP Class Standard IP20
Overload Capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)


Feature

■ Compact design for OEM customer requirements

■ Rich and flexible functions and customization functions meet various driving and speed regulation fields.

■ Parameter upload and download are realized in standard operation panel with copy progress indication, and uploaded parameters are selected to disable upload coverage.

■ With unique adaptive control technology, automatic current limiting and pressure limiting and underpressure suppression in operation.

■ Special parameter of constant pressure water supply,which has the function of sleep and wake.

■ Overload capacity is 150% 1 minute, 180% 10 seconds, 200% 0.5 seconds, with a 10-minute interval (inverse timing feature).


Model explanation



Product Catalogue

E5−H−4T□□□G Three−phase 400V Constant torque/heavy−duty application


Power (kW)

0.75

1.5

2.2

3.7

5.5

7.5

11

15

18.5

22

30

37

45

55

75

Motor

;power (kW)

0.75

1.5

2.2

3.7

5.5

7.5

11

15

18.5

22

30

37

45

55

75

Output

Voltage (V)

Three−phase 0 to rated input voltage

Rated current (A)

2.5

3.8

5.5

9

13

17

24

30

39

45

60

75

91

112

150

Overload capacity

150% ;1 minute, 180% ;10 seconds, 200% ;0.5 second, interval: 10 minutes (inverse time lag feature)

Input

Rated voltage/frequency

Three−phase 380V/480V; 50Hz/60Hz

Allowable voltage range

323V~ 528V; voltage imbalance 3%; allowable frequency fluctuation: ±5%

Rated current (A)

2.8

4.2

6.1

10

15

19

26

33

43

50

66

83

100

123

165

Braking unit

Built−in as standard

External braking unit

Protection class

IP20

Cooling mode

Natural air cooling

Force ;air cooling

Power (kW)

90

110

132

160

185

200

220

250

280

315

355

400

450

500


Motor ;

power (kW)

90

110

132

160

185

200

220

250

280

315

355

400

450

500


Output

Voltage (V)

Three−phase 0 to rated input voltage

Rated current (A)

176

210

253

304

350

380

426

470

520

600

650

690

775

860


Overload capacity

150% ;1 minute, 180% ;10 seconds, 200% ;0.5 second, interval: 10 minutes (inverse time lag feature)

Input

Rated voltage/frequency

Three−phase 380V/480V; 50Hz/60Hz

Allowable voltage range

323V ;~ ;528V; ;voltage ;imbalance ;3%; allowable frequency fluctuation: ±5%

Rated current (A)

No DC reactor

194

230

275

335

385

415

470

515

570

660

715

760

850

945


DC reactor*2

160

196

232

282

326

352

385

437

491

580

624

670

755

840


Braking unit

External braking unit

Protection class

IP20

Cooling mode

Force air cooling

If higher power level inverter is required, please contact the manufacture.


Note:
For 18.5kW to 75kW, the structure version is “A”, for other power class, the structure version doesn’t required to be shown for E5-H series.

Rated input current when external DC reactor is installed.


Technical Specification

Control characteristics

Control mode

Enhanced V/F control

Starting torque

0.50Hz  180%

Range of speed regulation

1:100

Precision of steady speed

± 0.5%

Product functions

Key functions

Under-voltage regulation, switchover of run command source(operation panel, terminal and communication), speed tracing function, multi− step frequency reference(up to 23 step frequency), motor data identification, S curve acceleration and deceleration, slip compensation, PID regulation, droop control, current limit, manual torque boost and auto torque boost,  programmable digital inputs, programmable digital outputs

Frequency reference mode

Parameter setting, operation panel UP/DN, terminal, terminal UP/DN, communication, analog AI1, analog AI2,analog AI3, pulse DI, etc.

Frequency range

0.00 ~ 300.00Hz

Start frequency

0.00 ~ 60.00Hz

Acceleration time and deceleration time

0.1 ~ 36000s

Dynamic braking

Braking unit action voltage: 650 ~ 750V; operating time: 100.0s

DC braking

DC braking start frequency: 0.00 ~ 300.00Hz

DC braking current: constant torque: 0.0 ~ 120.0%

                                variable torque: 0.0 ~ 90.0%

DC braking time: 0.0 ~ 30.0s, DC braking function does not required waiting time to start to realize quick braking

Magnetic flux braking

Enabled or disabled during deceleration are optional, the default setting is enabled

Unique functions

Multi-function M key

The unique multi-function key can be set to frequently used operations: such as JOG, emergency stop, switchover of run command source, switchover of parameters display mode, etc.

Multiple parameter display modes

Basic parameters display mode, fast parameters display mode, non−factory setting parameters display mode, last changed 10 parameters display mode

Parameters copy

The standard operation panel can realize the parameters upload, download and display the copy progress. Users can set to forbid overwriting the uploaded parameters

Dual 485 communication ports

Dual 485 communication ports support Modbus protocol (RTU). The maximum distance is 500 meters

Operation panel

Key type or shuttle type operation panel are optional

Protection level: IP20 as standard, IP54 as option

Common DC bus

All series product support common DC bus

Independent duct

All series product adopts independent duct design and supports the installation of heat-sink outside the cabinet

Power-On-Self-Test

(POST)

Realizing the POST of internal and peripheral circuits, including motor grounded, abnormal +10V power supply output, analog input and disconnection, etc.

Protection function

Power supply under-voltage, over-current protection, over-voltage protection, interference protection, abnormal comparison level, motor data identification failure, module(IPM) protection, heat-sink over temperature protection, inverter overload protection, motor overload protection, peripheral protection, abnormal current detection, output short circuit to ground, interruption of power supply when in running status, abnormal input power, output phase loss, abnormal EEPROM protection, abnormal pre-charging contactor detection, temperature sampling disconnection, abnormal +10V power supply, abnormal analog input, motor over temperature protection(PTC), abnormal communication, abnormal software version compatibility, abnormal copying, terminal mutual exclusion detection, hardware overload protection

Efficiency

At rated power:

E5-H series: 7.5kW and below power class ≥93%

           45kW and below power class ≥95%

           55kW and above power class ≥98%

E5-A series: 55kW and below power class ≥95%

           75kW and above power class ≥98%

Environment

Operating site

The product should be mounted vertically in the electric control cabinet with good ventilation. Horizontal or other installation modes are not allowed. The cooling medium is the air. The product should be installed in the environment without dust, corrosive gas, combustible gas, oil mist, steam, drip and free from direct sunlight

Ambient temperature

−10 to +40ºC, the product must be de-rated rated output current for the ambient temperature between 40ºC to 50ºC, the rated output current must be de-rated for 1% per 1ºC temperature rise

Humidity

5 to 95%, no condensing

Altitude

0 to 2000m, the product must be de-rated rated output current for the altitude above 1000 meters, the rated output current must be de-rated for 1% per 100 meters rise

Vibration

3.5m/s2,2 to 9Hz; 10 m/s2,9 to 200Hz; 15 m/s2,200 to 500Hz

Storage temperature

−40 to +70ºC

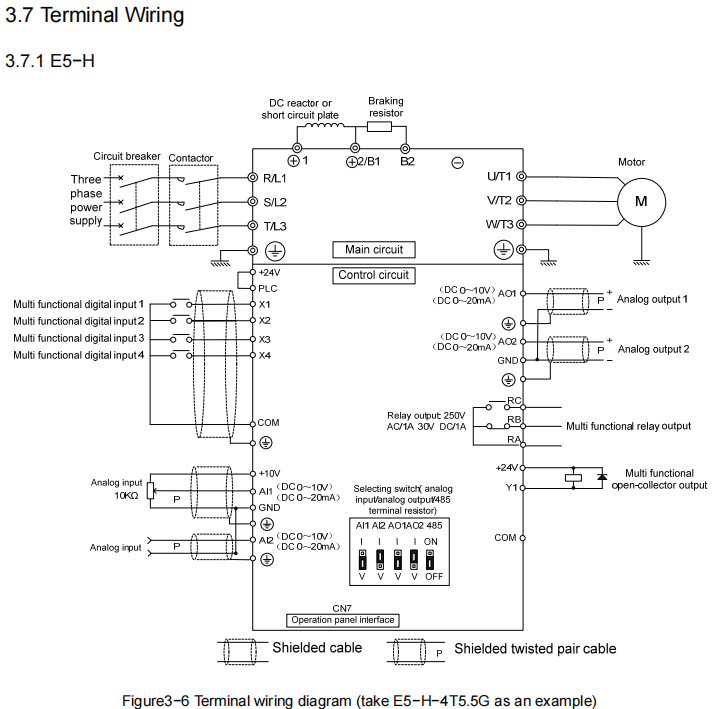

Motor Wiring

It is forbidden to short circuit the speed control inverter output terminals or short circuit to ground, otherwise the internal components of the variable frequency inverter will be damaged.

Do not short circuit the output cable to the 3 phase frequency drive enclosure, otherwise electric shock may happen.

It is forbidden to connect the output terminal of the inverter to the capacitor or LC/RC noise filter with phase lead, otherwise, the internal components of the inverter may be damaged.

When contactor is installed between the inverter and motor, it is forbidden to switch on/off the contactor when the VFDs is running; otherwise, large current will flow into the industrial inverter, triggering the inverter protection action.

Length of cable between the inverter drive and motor. If the cable between the frequency inverter and the motor is too long, the high−order harmonic leakage current of the output end will cause adverse impact on the AC inverter and the peripheral devices. Output AC reactor should be installed if the motor cable is longer than 100m, Refer to the following table for the switching frequency setting.



Length of cable between inverter and motor

 50m

 100 m

  100m

Switching frequency (PA.00)

 15kHz

 10kHz

 5kHz




Installation Dimension



E5−H−4T7.5G ;And below ;power class



E5−H−4T11G ; ;And ;above ;power class


Product appearance, Installation dimension, Approximate weight

Voltage

Model

Appearance and Installation Dimensionmm

weightkg

W

H

D

W1

H1

D1

T1

Hole ;d

400V

E5−H−4T0.75G

118

190

155

105

173

40.8

3

5.5

1.5

E5H−4T1.5G

118

190

175

105

173

60.5

4

5.5

2.6

E5H−4T2.2G

E5H−4T3.7G

E5H−4T5.5G

155

249

185

136

232

69

8

5.5

4.5

E5H−4T7.5G

E5H−4T11G

210

337

200

150

324

88

2

7

8.5

E5H−4T15G

E5H−4T18.5G

289

440

215

200

425

88

2.5

7

17

E5H−4T22G

E5H−4T30G

E5H−4T37G

319

575

212

220

553

90.5

2.5

10

25

E5H−4T45G

E5H−4T55G

404

615

255

270

590

86.5

3.0

10

35

E5H−4T75G

E5−H−4T90G

465

745

325

343

715

151.5

3.0

12

55

E5−H−4T110G

E5−H−4T132G

540

890

385

370

855

205.5

4.0

14

85

E5−H−4T160G

E5−H−4T185G

E5−H−4T200G

E5−H−4T220G

700

1010

385

520

977

210

4.0

14

125

E5−H−4T250G

E5−H−4T280G

E5−H−4T315G

810

1358

425

520

1300

210

4.0

14

215

E5−H−4T355G

E5−H−4T400G

E5−H−4T450G

E5−H−4T500G


Applications











Variable Frequency Drive Representative Industry

The use of variable frequency drive (VFD): a VFD is used to regulate the speed and torque of the Motor according to the variation of the load in order to improve the Motor energy efficiency. The High Performance Universal Inverter of Shenzhen V&T Technologies Co.,Ltd. is suitable for Air Compressor Industry, Textile Industry, Crane and Lifting Industry, Chemical Industry, Mining Machinery Industry, Ceramic Machine Industry, Injection Molding Industry, Die casting machine industry, Transport Machinery Industry, Stone processing industry, Fan&Pump Industry, Building Materials Industry, Packaging Machinery Industry, Food Machinery Industry, Wood-working Machinery Industry , Machine Tool Industry, Metal Processing Industry, Oilfield and Petroleum Industry, Printing and Packing Industry, Tension Control Industry and other simple applications of speed regulation.
